FEATURES

8.4" color active - matrix TFT with 4 x 3 Aspect Ratio Screen Resolution (HV): 800 x 600 pixels with Anti-glare Overlay Display colors: 256 K (18 bit color depth) VoIP Intercom and SIP Telephone (requires AMX SIP Gateway) Ready Full duplex audio built-in speaker and microphone 128 MB RAM/512 MB CompactFlash Memory or more (upgradeable) 802.11g WiFi for two-way network communications Wireless communications remain secure using WEP, WPA, WPA2, EAP-TLS, EAP-TTLS and PEAP network security standards 38 kHz and 455 kHz 1-way IR Nine programmable hard buttons Operates with two MVP-BP Battery Packs 12 VDC Power Supply for recharging batteries SPECIFICATIONS DIMENSIONS (HWD) 7 3/16" x 10 1/2" x 1 1/4" (18.2 cm x 26.6 cm x 3.1 cm) WEIGHT 2.0 lbs (910 g) Panel with one battery: 2.25 lbs (1.02 kg) Panel with two batteries: 2.65 lbs (1.20 kg) SCREEN PROPERTIES Screen resolution: 800 x 600 pixels (HV) @ 60 Hz frame frequency Aspect ratio: 4 x 3 Brightness (luminance): 180 cd/m2 Channel transparency: 8-bit Alpha blending Contrast ratio: 350:1 Display colors: 256K colors (18-bit color depth) Dot/pixel pitch: 0.21 mm Panel type: TFT Color Active-Matrix VIEWING ANGLE Vertical: + 60° (up from center) and - 40° (down from center) POWER REQUIREMENT (WITHOUT CHARGING) Panel with batteries fully charged or with no batteries: Constant current draw: 1.3 A @ 12 VDC Startup current draw: 1.9 A @ 12 VDC If panel is mounted onto a TDS or WDS, add 0.1 A to the above figures POWER REQUIREMENT (WHILE CHARGING) Panel while charging batteries: Constant current draw: 3.3 A @ 12 VDC Startup current draw: 3.9 A @ 12 VDC If panel is mounted onto a TDS or WDS, add 0.1 A to the above figures MINIMUM POWER SUPPLY REQUIRED PS4.4 Power Supply (FG423-44) -All MVP models ship with this power supply POWER MODES ON: Panel is fully functional. STANDBY: Panel uses low power, the LCD/backlight is shutdown, LEDs still function. Panel resumes the ON mode in ~ 1 second. OFF: On-board programs not running, touch screen still powered, LED not functional. Panel resumes the ON mode in ~ 30 seconds. CERTIFICATIONS FCC Part 15 Class B and CE IEC60950 BATTERY DURATION (using 2 batteries) Eight hours of normal use Four hours of continuous use (continuous On state). The MVP-8400i panel is shipped with two MVP-BP batteries. You must use both batteries to obtain the duration times given above. MEMORY 128 MB SDRAM 512 MB Compact Flash (upgradeable to 1 GB) - factory programmed ENVIRONMENTAL Operating Temperature: 0° C (32° F) to 40° C (104° F) Operating Humidity: 20% - 85% RH Storage Temperature: -20° C (-4° F) to 60° C (140° F) Storage Humidity: 5% - 85% RH INCLUDED ACESSORIES PS4.4 Power Supply (FG423-44) Stylus (pre-installed onto the left side of the unit) Two MVP-BP Power Packs (FG5965-20)

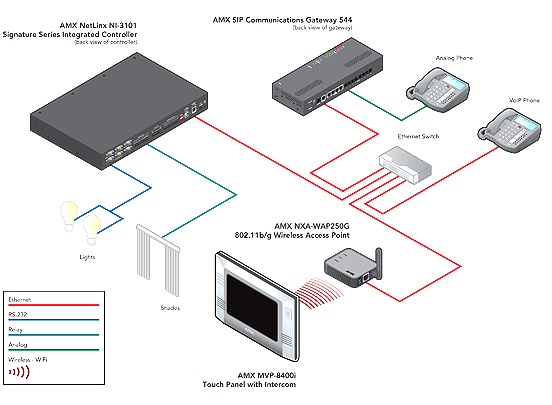

Diagram
