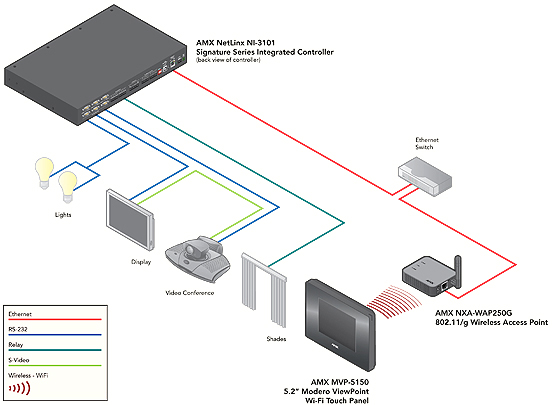

DIMENSIONS (HWD)
4 3/4" x 7 9/16" x 13/16" (12.1 cm x 19.2 cm x 2.0 cm)

WEIGHT
1.25 lbs (570 grams)

POWER REQUIREMENTS (WITHOUT CHARGING)
Panel with battery fully charged or with no battery:

• Constant current draw: 0.3 A @ 12 VDC
• Startup current draw: 0.4 A @ 12 VDC

POWER REQUIREMENTS (WHILE CHARGING)
Panel while charging battery:

• Constant current draw: 1.1 A @ 12 VDC
• Startup current draw: 1.3 A @ 12 VDC

MINIMUM POWER SUPPLY REQUIRED

• PS3.0 Power Supply (FG423-30) - both 120 VAC and 240 VAC models are shipped with this power supply

POWER MODES

• On: All necessary modules are powered up and device remains online with the NetLinx Master
• Sleep: Only the backlight will be turned off after the user selectable time of inactivity has elapsed. Panel resumes the ON mode in ~ 1 second upon a momentary press of the touchscreen.
• Shutdown: Power to all peripherals and components is turned off. The system remains in this mode until either it is rebooted or the battery is completely drained. The panel is re-activated by pressing the touchscreen and holding until the AMX splash screen appears.

CERTIFICATIONS

• FCC Part 15 Class B
• CE
• IEC/EN-60950
• RoHS
• Japan Approved
• Lithium-polymer microbattery: UN/IATA

BATTERY DURATION

• On mode - 6 hours of battery life
• Sleep mode - 8 hours of battery life

MEMORY

• 128 MB Mobile DDRAM (upgrade not available)
• 256 MB NAND Flash (upgrade not available)

SCREEN PROPERTIES

• Screen resolution: 800 x 480 pixels (HV) @ 60 Hz frame frequency
• Type: WVGA
• Aspect ratio: 16 x 9
• Brightness (luminance): 300 cd/m²
• Channel transparency: 8-bit Alpha blending
• Contrast ratio: 400:1
• Display colors: 262,144 colors (18-bit color depth)
• Dot/pixel pitch: 0.23 mm
• Panel type: TFT Color Active-Matrix

VIEWING ANGLE
Vertical: +80° (up from center) and -40° (down from center)

EXTERNAL COMPONENTS
Connector: 5-pin Mini-USB connector used for output to USB programming, firmware update, and touch panel file transfer between the PC and the target panel.

Note: When connecting the panel to PC using a CC-USB (or compatible) cable, be sure to power the panel On before attempting to connect the USB cable from the PC to the mini-USB port on the panel.

INTERNAL COMPONENTS
IR Emitters: Transmit IR over 20 feet (6.10 m) from the panel.

• IR emitters on G4 panels share the device address number of the panel.
• Transmits AMX fixed frequencies at 38 kHz and 455 kHz and user programmable frequencies from 20 kHz to 1.5 MHz

ENVIRONMENTAL

• Operating Temperature: 0° C (32° F) to 40° C (104° F)
• Operating Humidity: 5% to 85% RH
• Storage Temperature: -20° C (-4° F) to 60° C (140° F)
• Storage Humidity: 5% to 85% RH

INCLUDED ACCESSORIES

• Installation Guide (93-5966-07)
• PS3.0 Power Supply (FG423-30)
